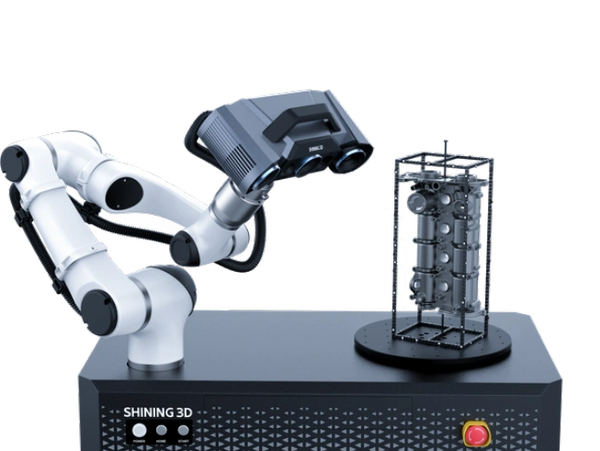

OPTIMSCAN-Q12

• Scan range :                      Large range: 430 × 300 mm,                  |             Accuracy :                    Large range: 0.015 mm,
                                             Small range: 160 × 110 mm                    |                                                   Small range: 0.005 mm

• Point distance:                 Large range: 0.1 mm,                              |             Working distance:       Large range: 590 mm,
                                            Small range: 0.04 mm                              |                                                    Small range: 210 mm

• Depth of field:                  Large range: 300 mm,                             |              Resolution:                  4 × 12.3MP
                                            Small range: 60 mm

• Light Source:                    Blue LED                                                   |               Weight:                       OptimScan Q12: 3.5 kg

• Dimensions:                    366 × 162 × 132 mm                               |               Certifications:            CE, FCC, ROHS, WEEE, KC, FDA,

                                                                                                                                                                                  UKCA, IP50, TELEC, TiSAX

• Acceptance test:            VDl/VDE 2634 Part2

                                (certified in ISO 17025 certificated accuracy lab)
