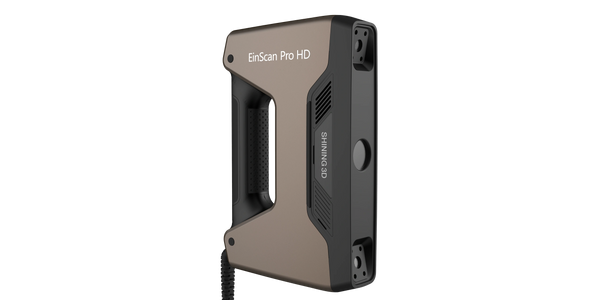

Einscan Pro HD ( Multi Utility - Multi Mode Scanner)

Technical Details

• Scan Mode :                      Handheld HD Scan                   Handheld Rapid Scan                   Fixed Scan with Turntable                   Fixed Scan without Turntable
• Scan Accuracy:                 up to 0.045 mm                             up to 0.1 mm                      0.04 mm (single shot accuracy)              0.04 mm (single shot accuracy)
• Volumetric Accuracy:                   0.3 mm/m (Marker Alignment)                                                  -----------                                                     -----------
• Scan Speed:                10 fps 3,000,000 points             30 fps1,500,000 points/s                            Single Scan < 0.5s                                       Single Scan < 0.5s
• Point Distanc:                  0.2 mm-3 mm                                0.25 mm-3 mm                                     0.24 mm                                                      0.24 mm
• Single Scan Range:                                                                            209*160mm — 310*240mm
• Depth of Field:                                                                                                   ±100 mm
• Working Distance:                                                                                                 510 mm
• Light Source:                                                                                                        LED
• Align Mode:                   Marker Alignment                        Marker Alignment                           Turntable Coded Target                                   Marker

                                                     Feature Alignment                       Texture Alignment                                     Feature                                                  Feature

                                                     Hybrid Alignment                        Feature Alignment                                     Marker                                           Manual Alignment

                                                                                                         Hybrid Alignment                              Manual Alignment

• Texture Scan:                                                                                      Yes (with Add-on: Color Pack)
• Outdoor Operation:                                                             Set up the shelter or cover to avoid direct sunlight.
• Special Objects for Scanning:                  For the transparent, highly reflective or some dark objects, please spray powder before scanning
• Software Included:                                                          ExScan Pro, Solid Edge SHINING 3D Edition
• Output Formats:                                                                              OBJ, STL, ASC, PLY, P3, 3MF
• Scanner Body Weight:                                                                   1.13kg (include the USB3.0 cable)
• Supported OS:                                                                                               Win 10, 64 bit
• Recommended: Graphics card:  Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700,
  memory: 64G;interface: high-speed USB 3.0
• Required:   Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230,
  Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
