ExModel 2026

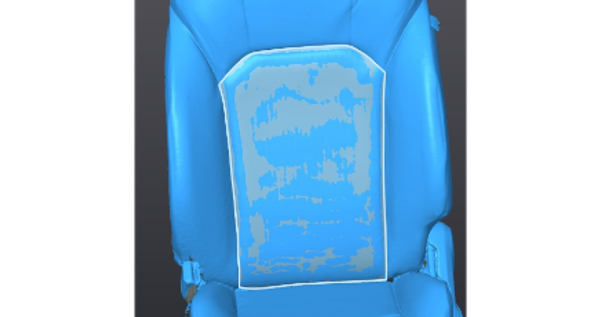

Cut complex meshes with sketched curves and profiles directly in true 3d. It's ideal for isolating regions, creating working area, and preparing  scan patches for downstream surfacing.

Create variable-radius fillets that smoothly adapt along an edge and handle tricky corners with three-face fillets. Achieve clean, smooth, and manufacturable blend, even on complex real-world geometry

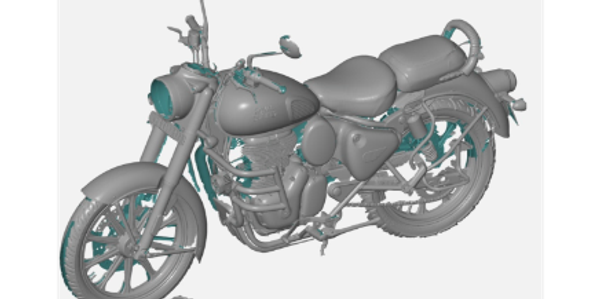

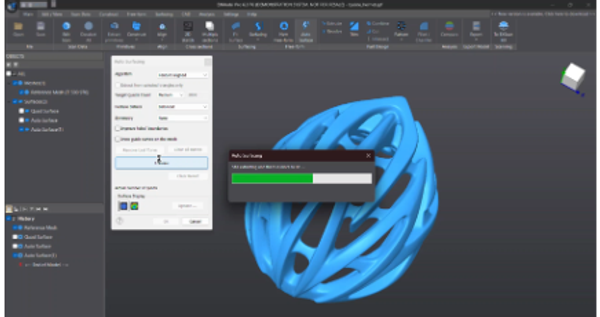

 Reverse-engineer organic shapes with one-click auto-surfacing. For more control, the quad-surface tools let you manually rebuild complex freeform surfaces. With snap-to-mesh technology, even non-professionals can create accurate shapes with ease—a unique capability you won’t find in other solutions.

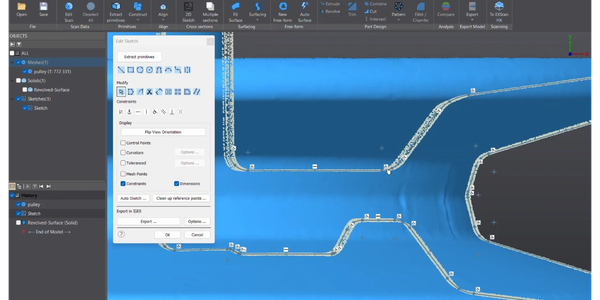

Use EXModel Pro’s dimensioning and constraint tools to create precise sketches with the familiarity of any professional CAD package. Interactive cutting lets you extract reference points directly from 3D geometry for 2D sketching Interactive creation works seamlessly with world and CAD planes as well as cut surfaces from aligned curves. For greater efficiency and control you can also create multiple cutting surfaces simultaneously.
