EinScan Rigil

The Tri-Mode Handheld Laser Wireless 3D scanner

High End 3d Scanner with Standalone & Wireless PC & Wired PC mode scanning

Marker-Free Laser Scanning

The EinScan Rigil features an advanced tracking algorithm that enables marker-free blue laser scanning through a hybrid Laser + IR scan mode.

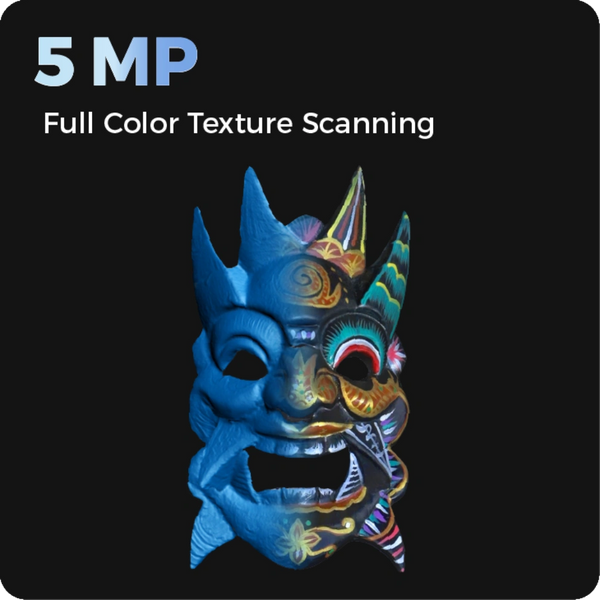

Full Color Texture Scanning

5MP high-deﬁnition camera that can restore high-quality texture details.

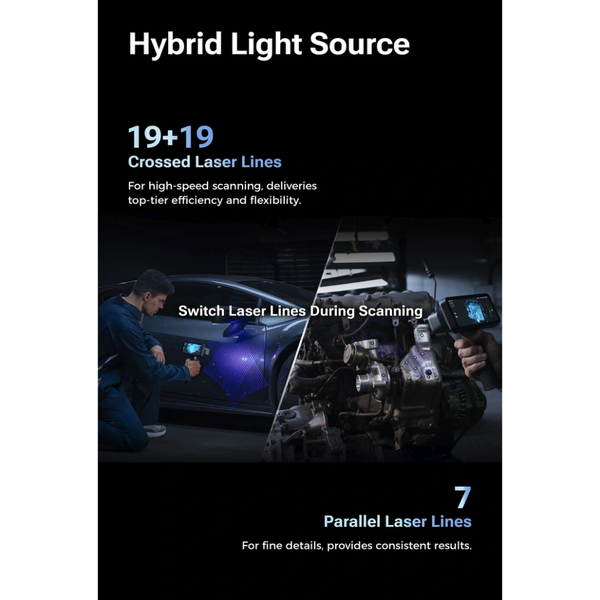

Laser HD Mode

19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
7 parallel laser lines: for fine details, provides consistent results.

0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

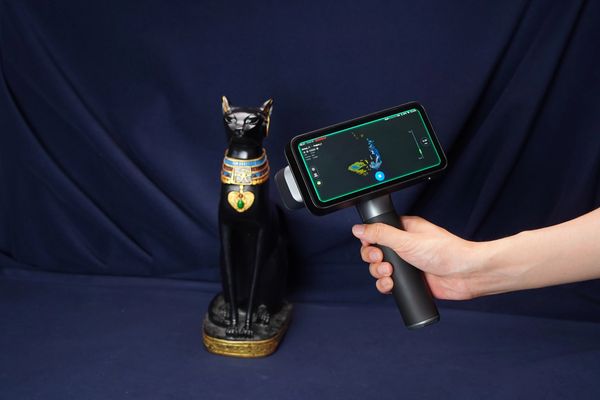

Wireless Workflow

Wireless scanning: Without connecting to PC
Wireless transfer: Data sharing to SHINING 3D Cloud
Wireless screen casting: Display on a second screen

Technical Specifications

Work Mode Wireless Standalone For extra computing resource: PC- Wireless / PC-Wired
Scan Mode Laser HD | IR Rapid
Light Source 19+19 crossed laser lines 7 blue laser parallel lines | IR VCSEL
Resolution 0.05 ~ 10 mm | 0.2 ~ 10 mm
Scanning Speed 4,400,000 points/s 940,000 points/s | 1,600,000 points/s
Working Distance 170 ~ 550 mm | 160 ~ 1500 mm
Alignment Mode Global Markers / Markers / Features / Hybrid | Global Markers / Markers / Features / Texture / Hybrid
Volumetric Accuracy Up to 0.04 + 0.06 mm/ m | Up to 0.1 + 0.3 mm/m
Camera Resolution 3D: 2.3MP*2 1.3MP*2; Texture: 5MP
Output Formats STL, OBJ, PLY, 3MF, ASC
Laser Class Class II
Hardware CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM; 32GB DDR5 RAM; 6.4”2K AMOLED Touch Screen
Operation Temperature Conditions -10℃ ~ 40℃
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Recommended Configurations for PC Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7- 11800H; Memory: ≥32GB
Interface & Power Source USB Type-C Battery: 6000mAh*2; Support 60W-PD3.0 Charger
Dimension (H*D*W) 233 × 180 × 72.8 mm
Net Weight with batteries 870 g
