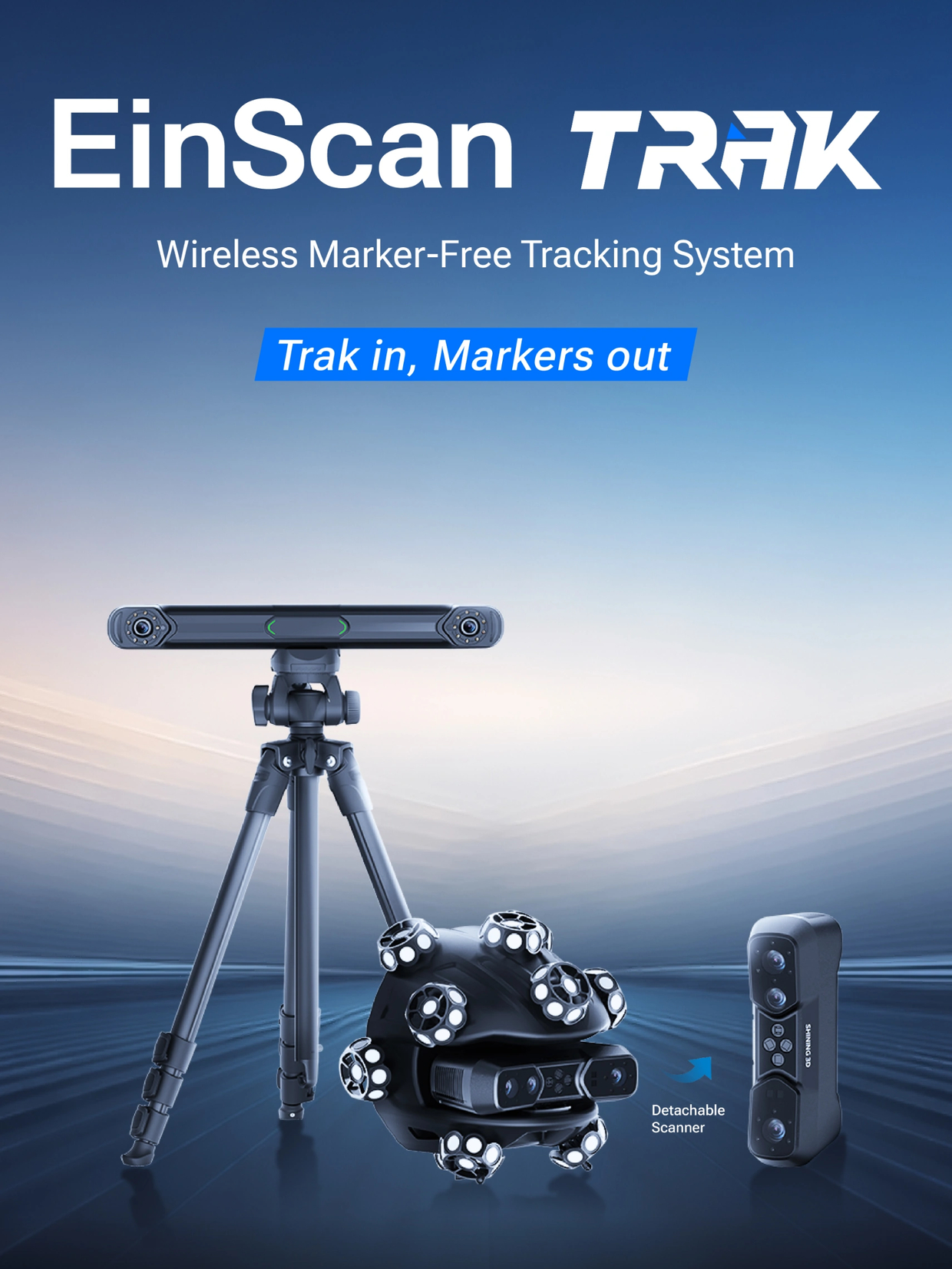

EinScan Trak

Technical Specifications

Product Model: EinScan Trak

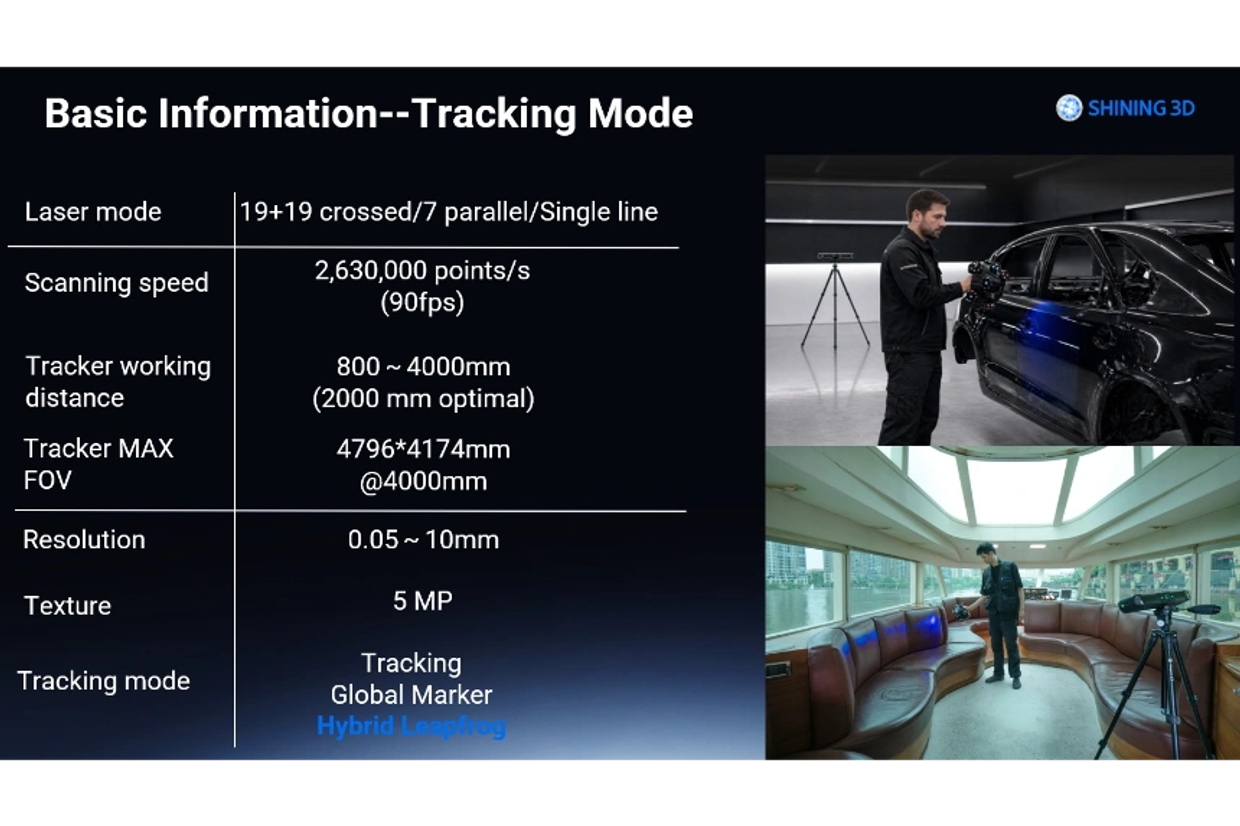

Work Mode Tracking Mode Handheld Scanner Mode
Scan Mode Laser Laser
Light Source 19+19 Crossed Laser Lines / 7 Parallel Lines / Single Line
Volumetric Accuracy Up to 0.1 mm
Resolution 0.05 ~ 10 mm
Scanning Speed 2,630,000 Points/s
Working Distance Tracking Distance: 800 - 4000 mm 100 - 500 mm

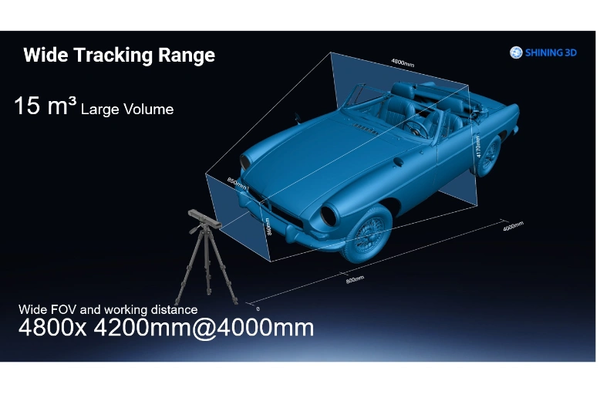

MAX FOV 4796mm × 4174mm @ 4000 mm 547mm × 463mm @ 500 mm
Tracking Volume 15 m³ /
Alignment Mode Tracking / Global Marker Marker / Global Marker / Feature
Camera Resolution Tracker Cameras: 5MP * 2 Depth Cameras: 2MP * 2; Texture Camera: 5MP * 1
Output Formats STL, OBJ, PLY, 3MF, ASC
Laser Class Class 2
Operation Conditions Temperature: -10°C ~ 40°C
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Windows 10/11 (64-bit); Graphics Card: NVIDIA GeForce RTX 3060;
MIN Configurations for PC VRAM: 6 GB or above; RAM: 32 GB or above, DDR5 dual-channel; Interface: USB 3.0; LAN;
Processor: 13th Gen Intel® Core™ i7-13650HX or above / AMD Ryzen7 7735H with Radeon Graphics or above;
Power Source 5.5 hours of continuous use 3.5 hours of continuous use
(Tracker 5400 mAh Batteries * 2; Scanner 5400 mAh Batteries * 2) (5400 mAh Battery * 1)
Interface USB type-C * 2 USB type-C * 1
Dimension Tracker: Scanner:
462 × 8 × 54 mm / 18.15" × 2.68" × 2.13" 199 × 193 × 172 mm / 7.83" × 7.59" × 6.77" (Handheld Scanner)
244 × 186 × 238 mm / 9.57" × 7.32" × 9.37" (Spherical Scanner)
Net Weight 1.02 kg / 2.23 lbs 1.46 kg / 3.21 lbs (Spherical Scanner)
0.48 kg / 1.17 lbs (Handheld Scanner
