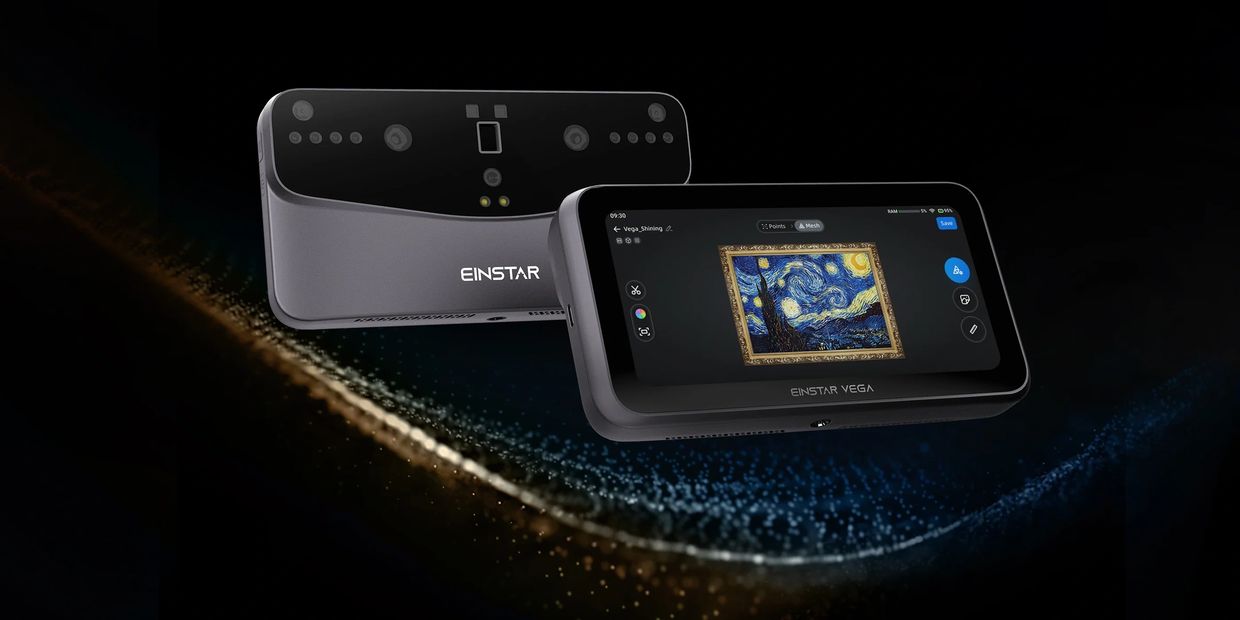

EinStar VEGA

Technical Details

•  Scan Mode                                                                                    HD Mode                                                                                         Fast Mode
•   Light Source                                                                            Infrared MEMS                                                                                 Infrared VCSEL
•   Point Distance                                                                           0.05 - 3 mm                                                                                      0.5 - 10 mm
•   Capture Frame                                                                         Up to 15 FPS                                                                                     Up to 20 FPS
•   Working Distance                                                                   100 - 300 mm                                                                                   350 - 1500 mm
•   Data Alignment Mode                                                                             Feature alignment, Markers alignment, Texture alignment
•   IR Camera Resolution                                                                 2MP                                                                                                    1.3MP
•  Color Camera Resolution                                                                                                              48MP
•  Output Formats                                                                                                                      ply; stl; obj; asc
•  Outdoor Scan                                                                                                                                   Yes
•  Scanner Body Weight                                                                                      Limited edition: 643 g; Regular edition: 535 g
•  Scanner Size                                                                                                       180 mm × 95 mm × 26.5 mm (L × W × H)
•  Supported OS                                                   No computer required for 3d scanning operation;  StarVision(Data processing program on PC):

                                                                          Windows10/11(64-bit), macOS  Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0(on Apple chip)

•   CPU                                                                                                                                      8-core CPU, 2.4GHz
•   RAM                                                                                                                                  32GB LPDDR4 Memory
•   Internal Hard Drive                                                                                                       32GB eMMC + 512GB SSD
•   Power Charger                                                                                            65W fast charging, supports PD/PPS protocols
•   Interface                                                                                                                             Wi-Fi 6, USB Type C
•   Battery                                                                                               Built-in 5000mAh;  External power bank charging supported
•   Touchscreen                                                                                                                          6.4'' 2K AMOLED
•  Supplemental Light                                                                                                                       10 LED
•   IMU                                                                                                                                                   6 DoF
•  Operating Temperature Range                                                                                                -10℃ - 40℃
•   Operating Humidity Range                                                                                      0 to 90% RH (non-condensing)
•   Packing Size                                                                                                               380 mm × 305 mm × 155 mm
•  Protection Grade                                                                                                                             IP50
