FreeScan Combo IR + Blue Laser 3D Scanner

FreeScan Combo

Metrology Grade IR + Blue Laser Scanner For Medium & Large Parts

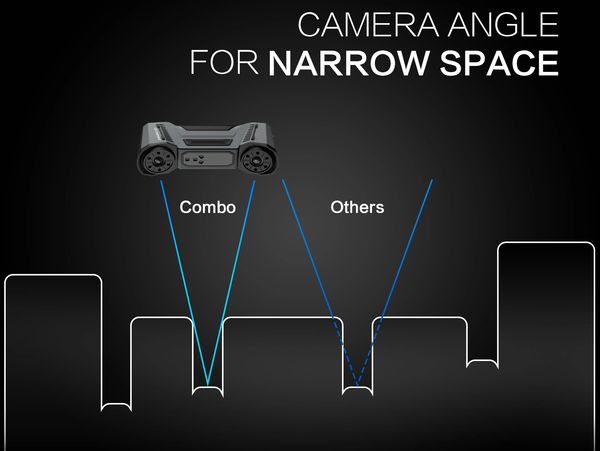

Camera Angle for Narrow Area

it's helps for Capturing depth Area

Metrology-class high accuracy

Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm.

*According to VDI-VDE 2634-2

FreeScan Combo

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL

Technical Specifications

Technical Details

Product Model: FreeScan Combo
Scan Mode: | Multiple Lines Scan | Single Line Scan | Fine Scan | Infrared Scan |
Light Source: | 26 lines | +1-line blue laser | 7 Parallel Lines | VCSEL Light Source |
Working Distance: | 300mm | 300mm | 200mm | 300mm |
Scan Accuracy: Up to 0.02 mm | \ |
Volumetric Accuracy: 0.02 mm + 0.033 mm/m | \ |
Scan Speed: 1,860,000 points/s | 2,250,000 points/s |
Scan Depth (Depth of field): 360mm | 200-1240mm |
Max FOV: 520mm X 510mm | 430mm X 430mm |
Point Distance: 0.05mm - 3mm | 0.2mm - 3mm |
Laser Class: Class II (eye safe)
Connection Standard: USB 3.0
Dimensions: 193mm x 63mm x 53mm
Weight: 620g
Power Input: DC: 12V, 5.0 A
Operating Temperature Range: 20°C-40°C
Operating Humidity Range: 10%-90%
Certifications: BIS, CE，FCC，ROHS，WEEE，KC，FDA，UKCA，IP50
Recommended System Configuration:                OS：Win10/ 11，64 bit；Graphics card: NVIDIA GTX/RTX series cards，
                                                                                    higher or equal to GeForce RTX 3060；
                                                                                    Video memory：≥6 G；Processor：I7-10700；Memory：≥32 GB
