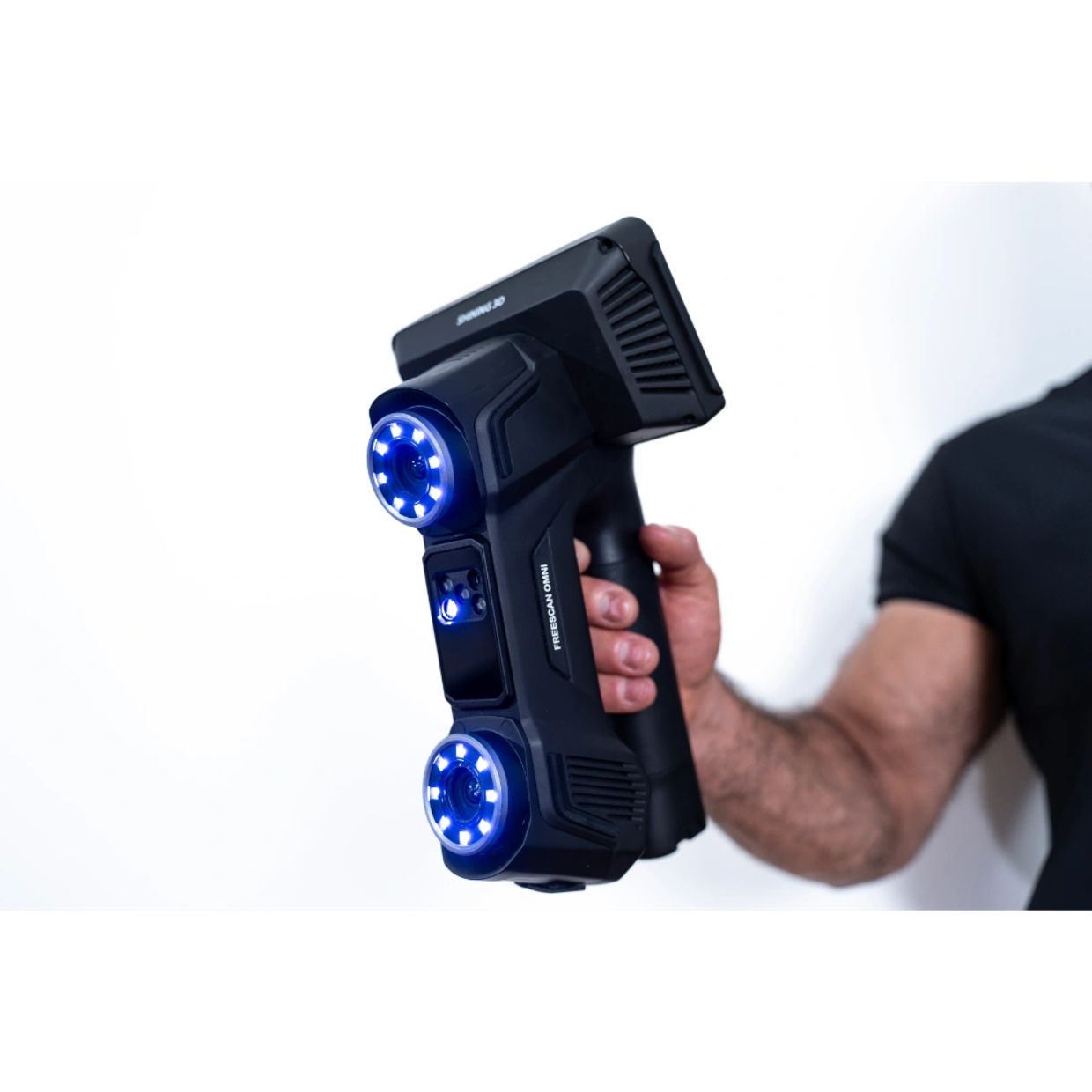

FreeScan Omni
Two Work Mode Laser Wireless 3D scanner
Standalone Handheld Mode and Wireless PC + Ethernet PC Mode
Product Feature
Two Work Modes (PC and Standalone mode), On device Inspection , Built-in Video Photogrammetry, Certified Metrology Accuracy, Smart Dock, Multiple Scanning Mode, etc.

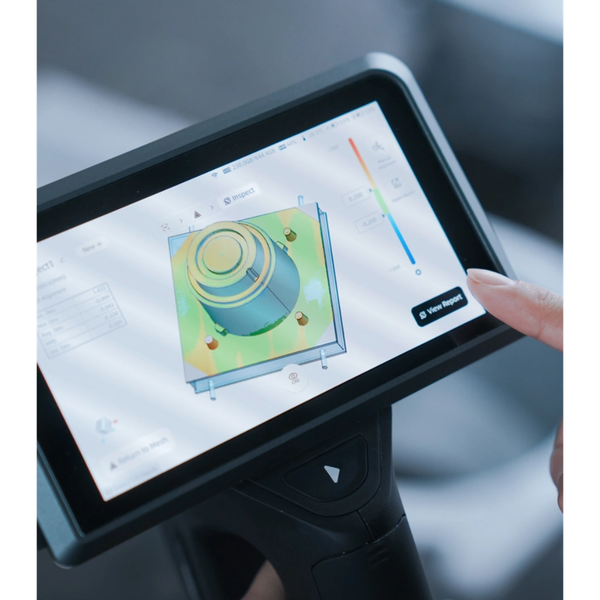

On-device Inspection
•Built-in PTB-certified module,
•One-click to run inspection templates,
•Visualized inspection results with customized reports,
•Streamline the whole workflow on device from scanning to inspection.
Built-in Video Photogrammetry (VPG)
•Volumetric accuracy: 0.02mm + 0.015 mm/m
•No coded target needed
•Preparation time reduction
•Built-in module to save the cost of standalone •photogrammetry system
•Elevated accuracy for large-scale scans
•With CNAS-certified scale bar

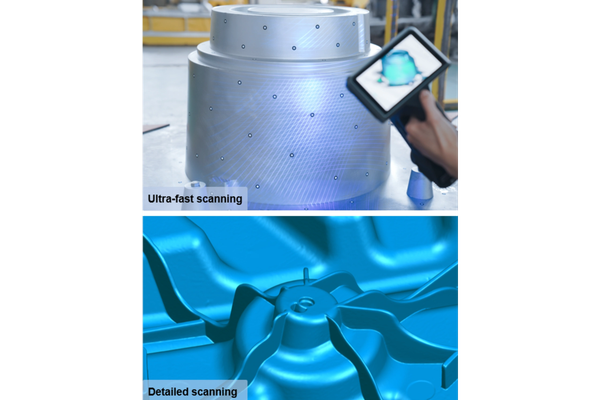

Multiple Scanning Modes
Light Source :
Blue laser: Marker alignment for high accuracy quality control
•Ultra-fast scanning: 31x 3 laser lines, up to 7,619,000 points/s •Detailed scanning: 25 parallel laser lines •Deep hole scanning: 1 laser line.
Infrared speckle:
•Feature alignment
•Marker-free scanning
•Large FOV up to 1.2 x 1.1 m.
