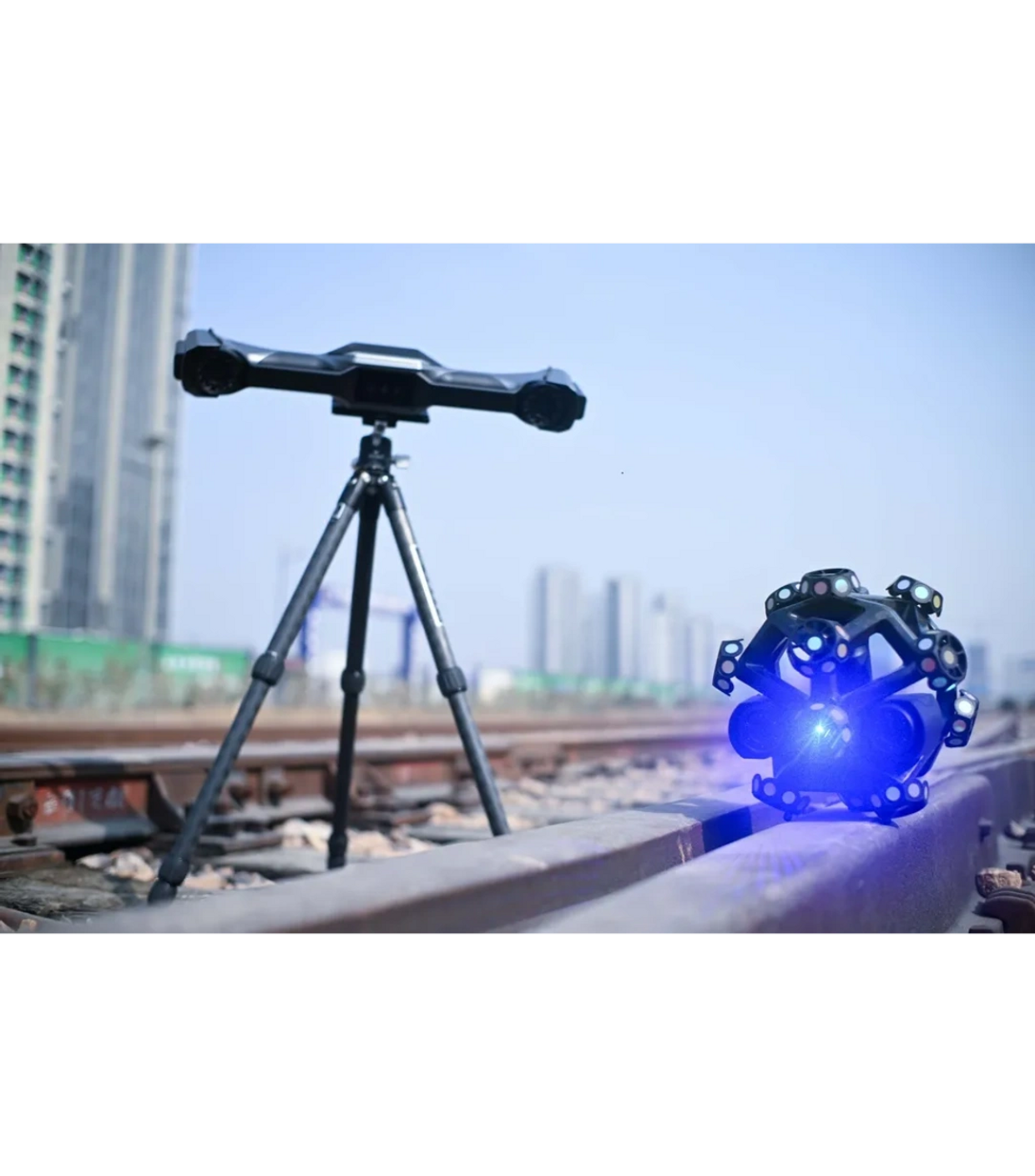

FreeScan Trak Nova

Specification:                                                            FreeScan    Trak Nova

Product Type                                                             Wireless multi-functional dynamic tracking & 3D scanning system

Scanning Technology                                              Laser

Scan Accuracy                                                          0.020 mm

Volumetric Accuracy                                               0.062   mm (12 m³)

VPG Volumetric Extension Accuracy                   0.046 + 0.012 mm/m

Maximum Scan Speed                                            6,140,000 points/s

Resolution / Point Distance                                   0.01–10   mm

Maximum   Field of View                                        2600   × 2,200 mm

High-Speed Scan                                                     50 laser lines

Detailed Scan                                                           7 parallel laser lines

Deep-Pocket Scan                                                  1 laser line

Connection                                                               Wireless & wired mode (fiber optic)

TE   Nova Depth of Field                                         380 mm (170–550 mm)

UE   Nova Depth of Field                                         2,700 mm (800–3,500 mm)

Material Adaptability                                               Normal / Dark / Reflective

Alignment Modes                                                     Feature alignment / Marker alignment

Certifications                                                            CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX

Acceptance Standards                                             VDI/VDE 2634 Part 3 & ISO 10360
