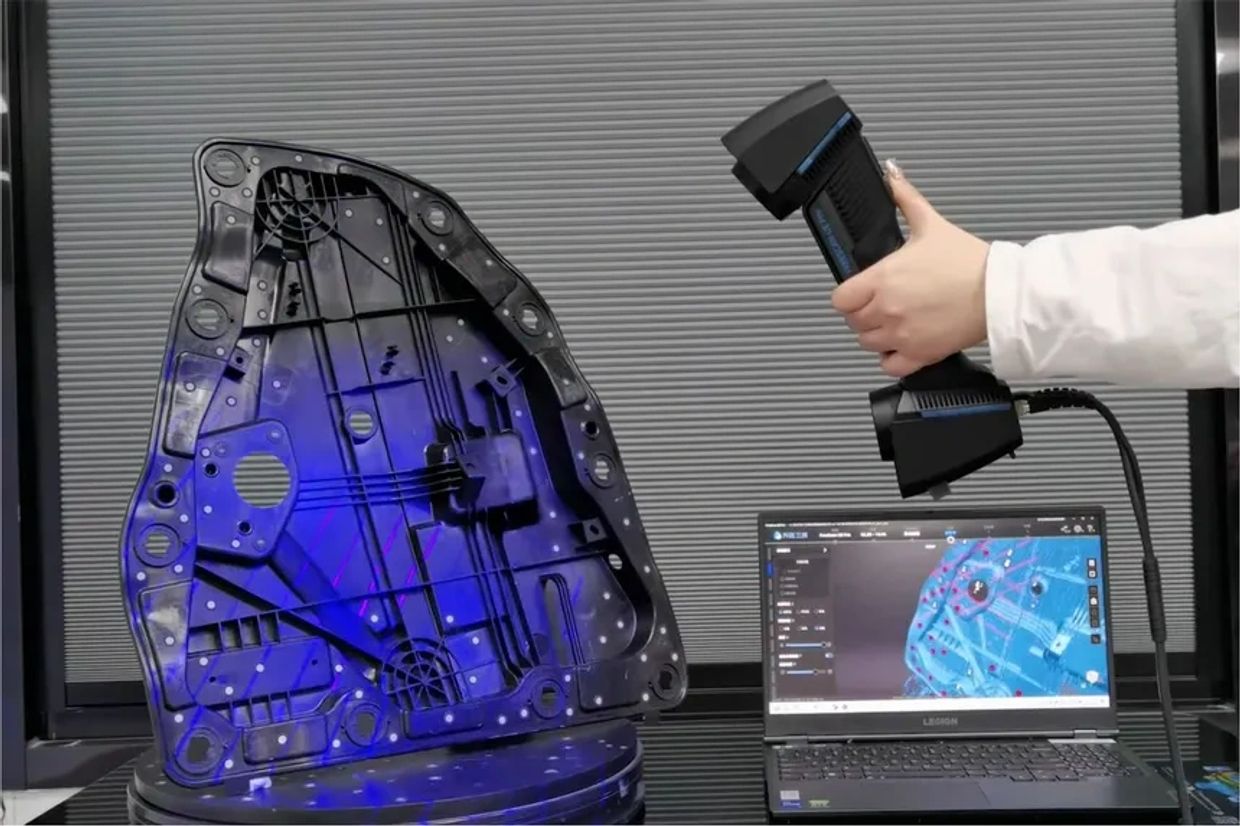

FreeScan UE Pro Blue Laser + PhotoGrametry

Technical Details

• Product Model: FreeScan UE PRO
• Scan Mode:                  |           Multiple Lines Scan        |          Single Line Scan            |                Fine Scan
• Light Source:                |             26 laser lines                 |        Single Laser Line             |           5 Parallel Lines
• Working Distance:       |                                               300mm                                              |                   200mm
• Scan Accuracy:                                                                                      Up to 0.02 mm
• Volumetric Accuracy:                  0.02+0.03 mm/m (standard mode); 0.02+0.015 mm/m (built-in photogrammetry mode)
• Scan Speed:                                                                                          1,850,000 points/s
• Scan Depth (Depth of field):                                                              170 mm ~ 680 mm
• Max FOV:                                                                                               600 mm x 550 mm
• Photogrammetry:                                                             Built-in scale bar photogrammetry mode
• Laser Class:                                                                                              Class II  (eye safe)
• Connection Standard:                                                                                      USB 3.0
• Dimensions:                                                                                 298 mm x 103.5 mm x 74.5 mm
• Weight:                                                                                                                  840g
• Power Input:                                                                                                 DC: 12V, 5.0 A
• Operating Temperature Range:                                                                     20°C-40°C
• Operating Humidity Range:                                                                             10%-90%
• Certifications:                                                                BIS,   CE，FCC，ROHS，WEEE，KC，FDA，UKCA，IP50
•  Recommended System Configuration:                OS：Win10/ 11，64 bit; Graphics card: NVIDIA GTX/RTX series cards，
                                                                                      higher or equal to GeForce RTX 3060；
                                                                                      Video memory：≥6 G；Processor：I7-10700；Memory：≥32 GB
