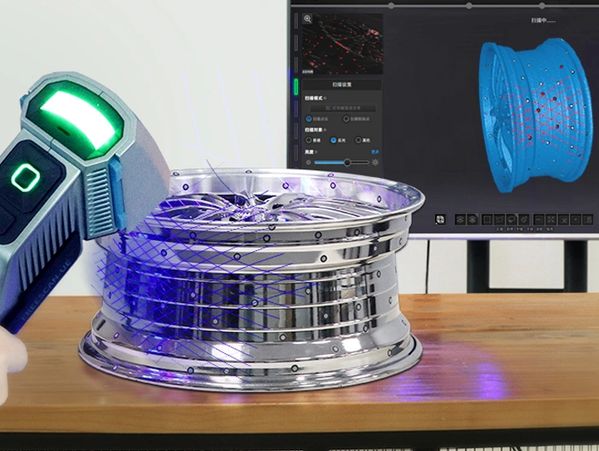

FreeScan UE 11 Blue Laser 3D Scanner

Technical Details

• Product Model: FreeScan UE11
• Scan Mode: Multiple Lines Scan, Single Line Scan
• Scan Accuracy: Up to 0.02 mm
• Volumetric Accuracy: 0.02 mm + 0.04 mm/m
• Volume Accuracy with Digi Metric*: 0.02 mm + 0.025 mm/m
• Scan Speed: 1,020,000 points/s
• Working Distance: 500mm
• Scan Depth (Depth of field): 300mm-700mm
• Max. Scan Range: 510mm x 520mm
• Point Distance: 0.05mm - 3mm.
• Light Source: 22 lines +1-line blue laser
• Laser Class: Class 2M (eye safe)
• Connection Standard: USB 3.0
• Dimensions: 298mm x 90mm x 74.5mm
• Weight: 670g
• Powering: DC: 12V, 5.0 A
• Operating Temperature Range: 0°C-40°C
• Operating Humidity Range: 10%-90%
• Certifications: BIS, CE, FCC, ROHS, WEEE
• Output Format: STL, OBJ, ASC, PLY, P3, 3MF
• Recommended System Configuration: OS; WIN 10(64bit), NVIDIA GTX/RTX series cards, higher or equal to GeForce GTX 1660Ti; RTX 3050; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB
