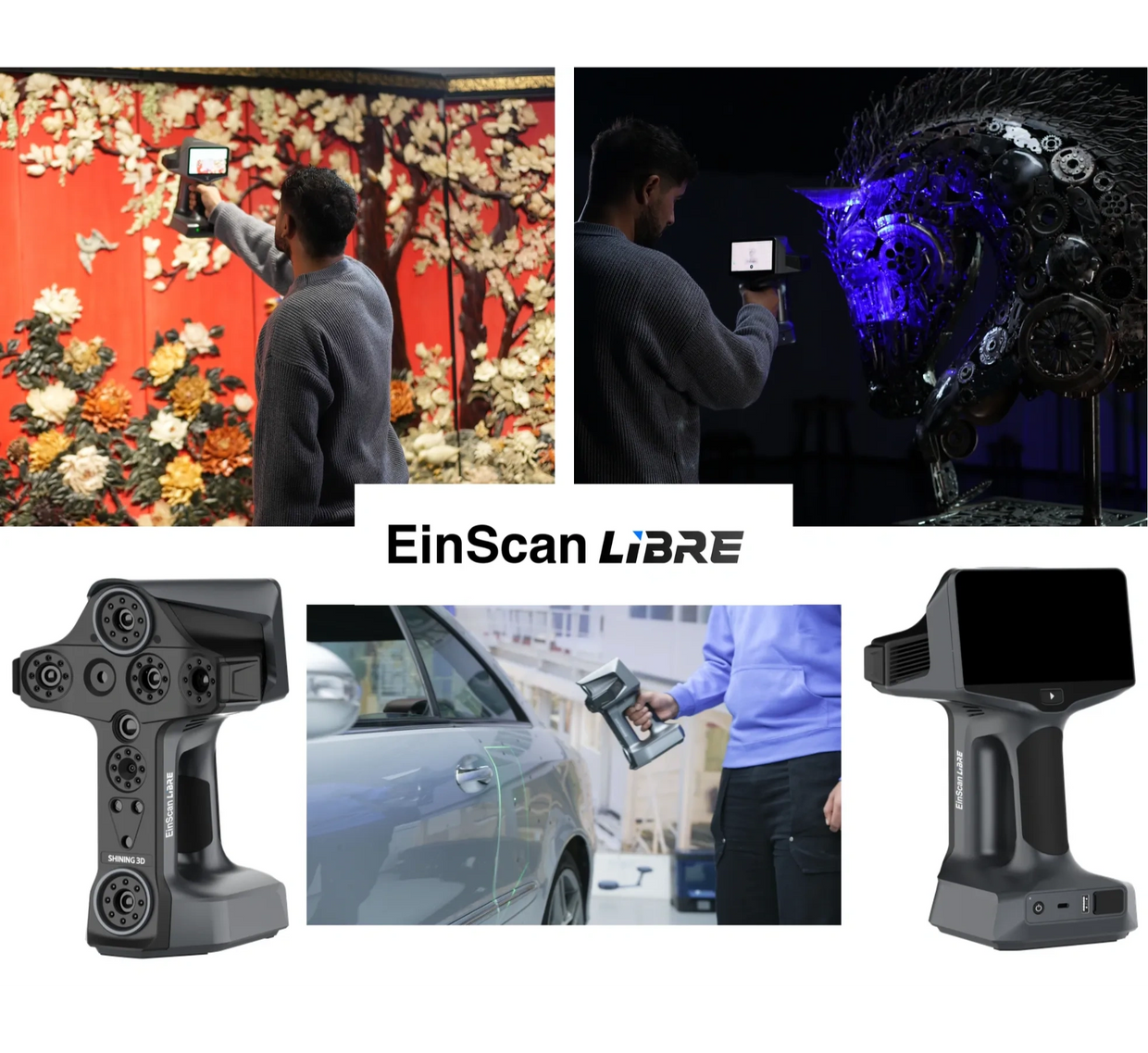

EinScan Libre

EinScan Libre delivers a fully wireless 3d scanning, 2x faster experience with user-friendly operation

it's helps for Capturing Large field of view Area

IR Adaptive: 38 IR laser lines

Laser HD: 101 blue laser lines

IR Rapid: IR VCSEL

High-resolution color capture with 48MP color camera

Large field of view 983 x 979 mm

Scan speed Up to 4,500,000 points/s (Laser HD)

Alignment modes: Texture / Global markers / Hybrid / Markers / Feature

Technical Specifications

Technical Details

Product Model: EinScan Libre
Scan Mode/Light Source: | IR Rapid: IR VCSEL | IR Adaptive: 38 IR laser lines | Laser HD: 101 blue |
Working Distance: | 500 ~ 1500mm | 500 ~ 1200mm | 200 ~ 500mm |
Volumetric Accuracy: | ---------Up to 0.04 + 0.06 mm/m---------
Scan Speed: | 2,700,000 points/s | 1,900,000 points/s | 4,500,000 points/s
Max FOV: | 370 × 470- 983 × 979 mm | 370 × 470- 779 × 835 mm | 165 × 200 - 382 × 450 mm |
Point Distance (Resolution) : | 0.5 ~ 10 mm | 0.5 ~ 10 mm | 0.05 ~ 3.0 mm |
Laser Class: ---------Class II (eye safe)---------
3D Camera Resolution : ----------5 MP---------
Color Camera Resolution : ----------48 MP---------
Output Formats: ----------STL; OBJ; PLY; 3MF; ASC; LAS----------
Align Mode: | Markers / Global Markers | Markers / Global Markers | Markers / Global Markers |

| / Feature / Texture / Hybrid | | Feature / Texture / Hybrid |

Operating Temperature Range: ----------20°C-50°C----------
Operating Humidity Range: ----------10%-90% RH----------
Recommended System Configuration: OS：Win10/ 11, CPU: intel i7-11700 or higher; GPU: NVIDIA GTX 1070 or higher; VRAM: 6GB or more; RAM: 32 GB or more; OS: Window 10 or 11 (64-bit)
